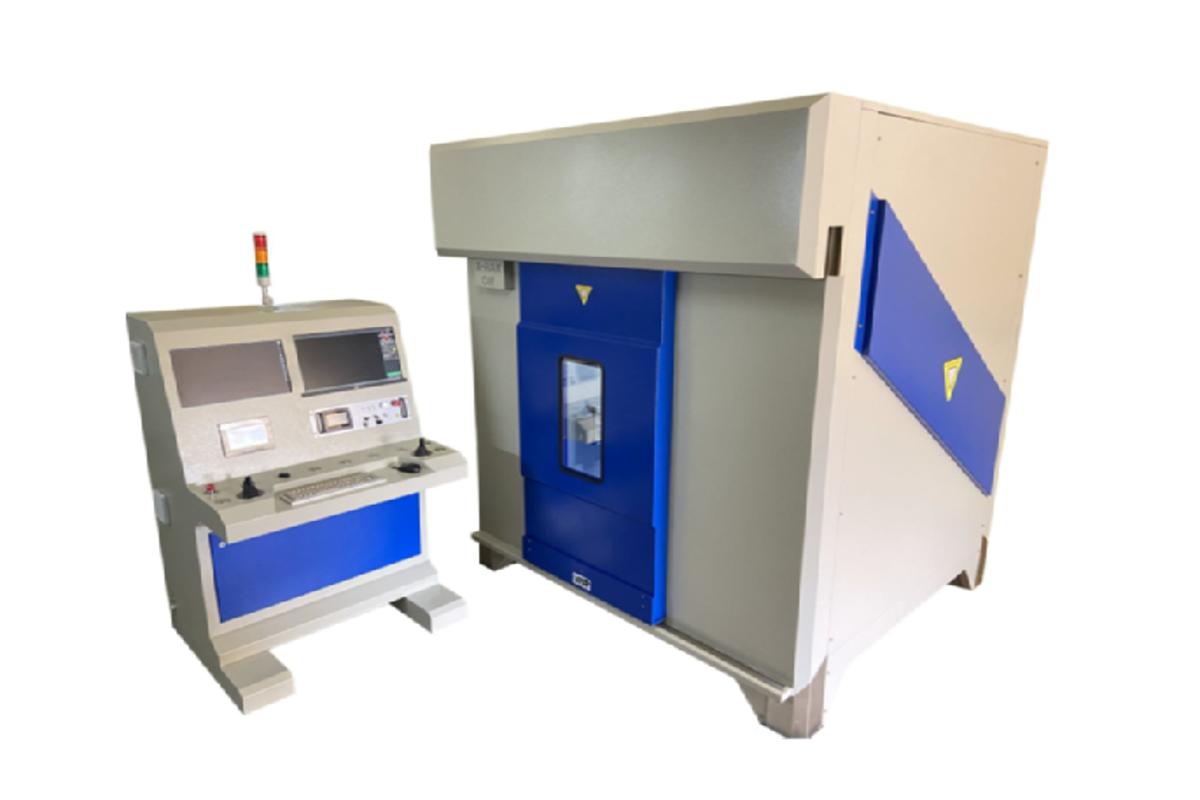

Industrial X-Ray Machine - For Tyre Inspection
Our Industrial X-Ray Machine for Tyre Inspection is designed to non-destructively analyze and inspect tyres for internal defects, structural inconsistencies, steel belt separations, trapped air pockets, and sidewall faults. It is ideal for manufacturers, quality labs, and R&D centers in the automotive and aviation sectors.
The system improves safety assurance by enabling full 2D/3D scanning of tyre cross-sections with high-resolution imaging and advanced defect recognition software.
Model No. - PSIPL-TIRE 9090
| Application | Non-destructive Inspection of Passenger & Commercial Tyres |
|---|---|
| Defect Types | Steel belt misalignment, air pockets, delamination, bead area issues |
| Scan Options | Cross-sectional, sidewall, full circumference (360°) |
| Rotary stage included for 360-degree inspection | |
| Supports automatic image capture and defect flagging | |
| X-Ray Source | Microfocus 200kV, High-Penetration Tube |
|---|---|
| Detector | Flat Panel Digital Detector, 14-bit, Real-Time Imaging |
| Tyre Size Range | Up to 1200 mm diameter |
| Image Resolution | Up to 75 μm (pixel pitch) |
| Scan Time | 30 – 60 seconds per tyre (average) |
| Software | Real-time defect detection, report generation, auto saving |
| Power Supply | 230 VAC ±10%, 50Hz, Single Phase |
| Safety | Lead Shielded Cabinet, Emergency Stop, Interlocks, AERB Compliant |
| Machine Dimensions | 2000 x 1800 x 2100 mm (LxWxH) |
| Approx. Weight | 1000 Kg |
