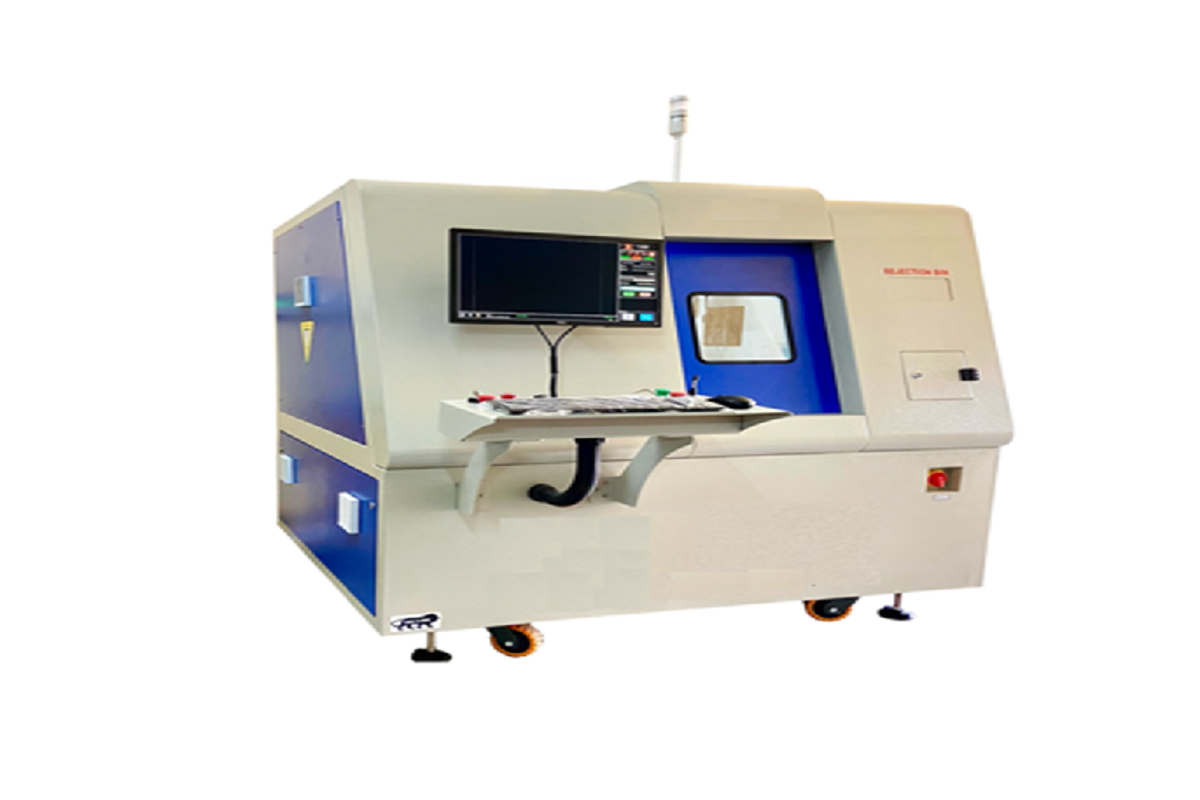

Industrial X-ray Machine - For Single Piece Cigarette Inspection
We manufacture precision-engineered **Industrial X-Ray Machines** for **real-time inspection of single cigarettes**, ensuring high-quality tobacco filling, correct filter placement, and absence of foreign objects. This non-destructive inspection system is designed for high-speed production lines in the tobacco industry.
The system enables manufacturers to maintain strict quality control standards, reduce customer complaints, and meet regulatory compliance. It is ideal for detecting loose filling, missing filters, or embedded metal/plastic contaminants in each cigarette stick.
Model No. - PSIPL-TBC 1010
| Application | Inspection of single cigarette sticks |
|---|---|
| Inspection Capabilities | Filling detection, Filter placement, Foreign body detection |
| Conveyor Speed | Up to 300 cigarettes per minute |
| Inline integration with cigarette making machines | |
| Reject mechanism for defective pieces (optional) | |
| X-Ray Source | 80–120kV, Microfocus tube |
|---|---|
| Detector | High-resolution Line Scan Detector |
| Image Resolution | Up to 50 microns |
| Software Analysis | Defect classification, image archiving, pass/fail signal output |
| System Throughput | Up to 18,000 pieces/hour |
| Power Supply | 230V AC, Single Phase |
| User Interface | Touchscreen HMI with real-time monitoring |
| Dimensions | Compact inline housing (customizable) |
| Safety | Lead shielding, Emergency stop, X-ray leakage < 1 μGy/h |
| Weight | Approx. 400 Kg |
