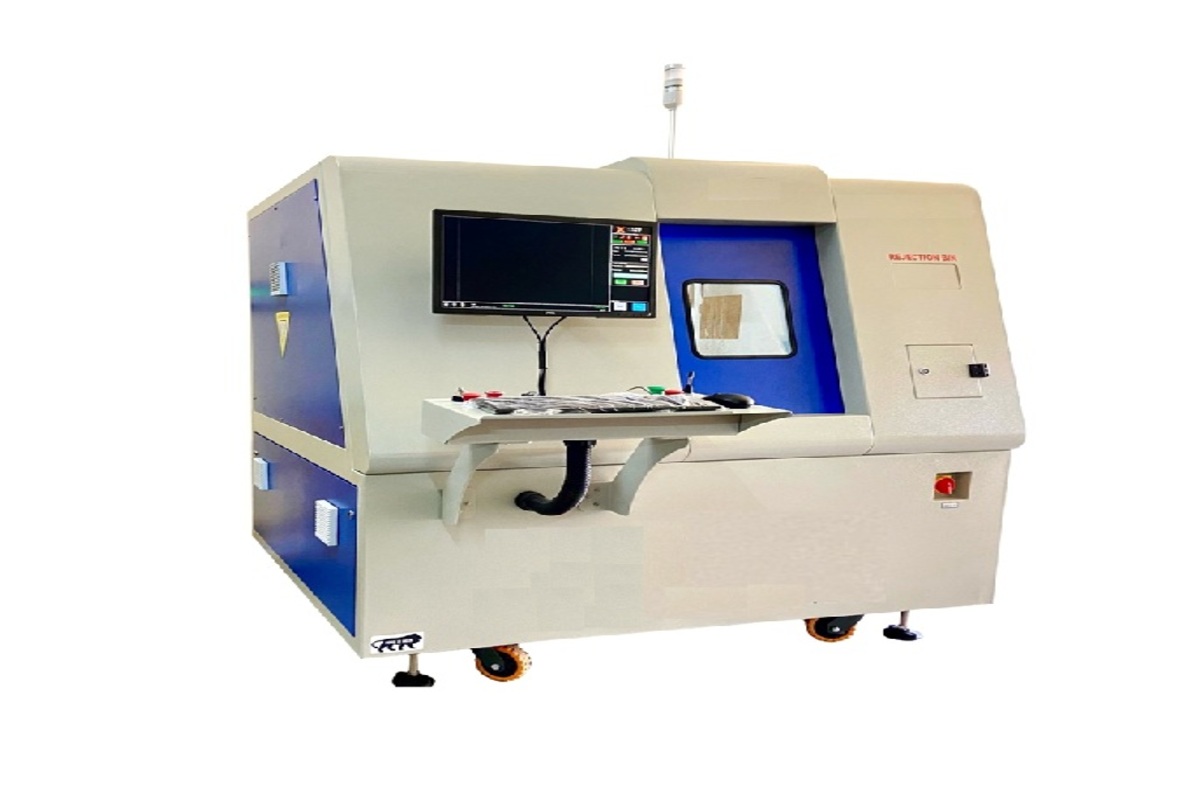

Industrial X-ray Machine - For Electrical Assembly Industries
We provide advanced **Industrial X-ray Machines** tailored for the inspection and quality control of **electrical assemblies**. These machines help identify internal faults such as solder defects, missing components, wire bonding errors, and short circuits—without dismantling the device.
Widely used in switchgear, PCB manufacturing, control panels, and electrical product assembly lines, our X-ray systems enhance product reliability and ensure compliance with international standards.
Model No. - PSIPL-EXA 5030
PRODUCT DETAILS
| Application | Inspection of Electrical Components and Assemblies |
|---|---|
| Industries Served | PCB, Switchgear, Control Panels, Automotive Electrical |
| Imaging Type | Microfocus Digital Radiography (DR) |
| Pinpoint detection of solder bridges, voids & missing elements | |
| Suitable for multilayer boards and small components | |
TECHNICAL SPECIFICATIONS
| X-Ray Source | 100–160 kV Microfocus Tube |
|---|---|
| Detector | High-Resolution Digital Flat Panel |
| Component Size Range | From 1 mm to 300 mm |
| Magnification | Up to 100x optical zoom |
| Resolution | Up to 2 microns |
| Software Features | Auto defect detection, BGA analysis, 3D slice view |
| Radiation Safety | Fully Shielded Cabinet, AERB Certified |
| Power Supply | 230V AC, Single Phase, 50Hz |
| System Weight | Approx. 600 Kg |
