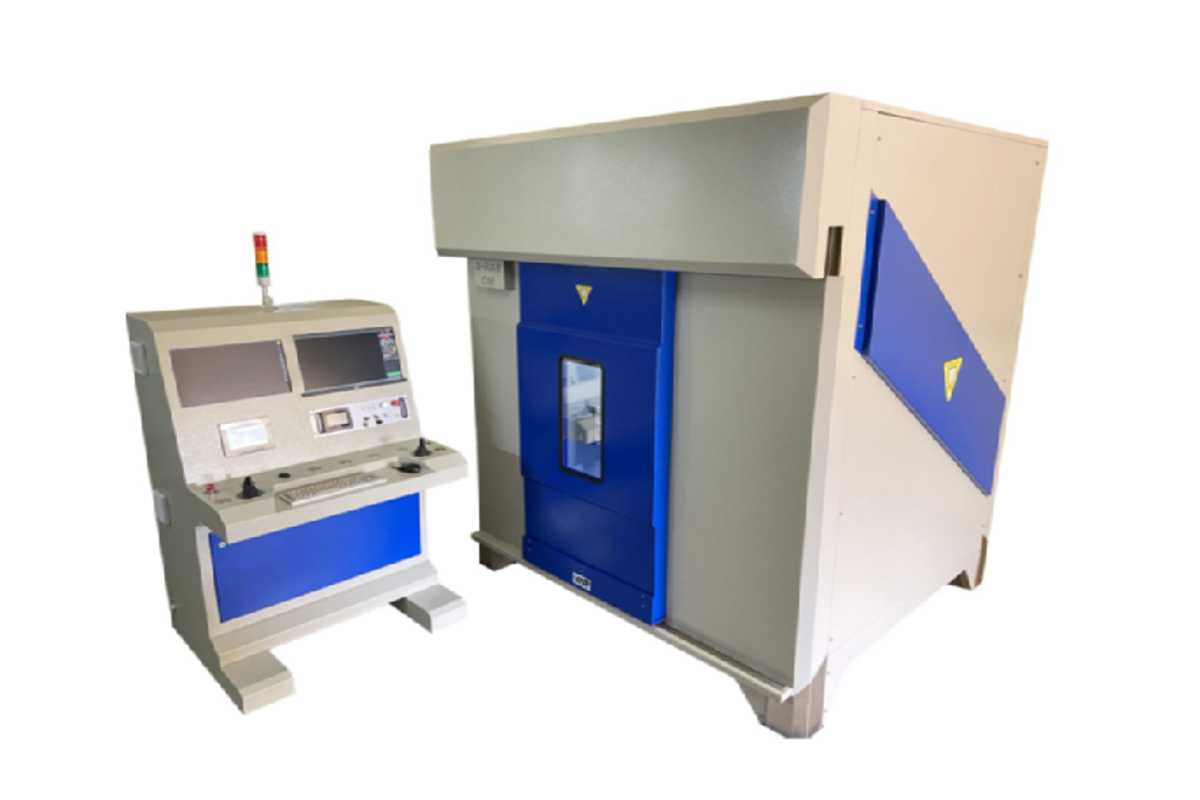

Industrial X-Ray Machine - For Aluminum Die-Cast Parts
We are a leading Manufacturer, Supplier, and Exporter of **Industrial X-Ray Machines** designed specifically for inspecting **Aluminum Die-Cast Components**. These machines help detect internal defects such as shrinkage, porosity, voids, cold shuts, and inclusions — ensuring the structural integrity of die-cast parts used in critical applications.
Our solution is widely used in the automotive, aerospace, electronics, and industrial machinery sectors. It enables high-throughput, non-destructive testing (NDT) and real-time imaging with high accuracy and safety compliance.
Model No. - PSIPL-DCX 6040
| Application | Inspection of Aluminum Die-Casting Components |
|---|---|
| Industries Served | Automotive, Aerospace, Electrical, Engineering |
| Imaging System | Digital Radiography with high-resolution detector |
| Detects shrinkage cavities, gas holes, and inclusions | |
| Supports casting parts of varied thicknesses and sizes | |
| X-Ray Source | 160 kV / 225 kV microfocus X-ray tube |
|---|---|
| Detector | Digital flat panel (high resolution) |
| Component Size Capacity | 600 mm × 400 mm |
| Cast Thickness Range | 2 mm to 30 mm |
| Penetration Capability | Up to 30 mm aluminum |
| Display Features | Real-time image zoom, contrast adjust, annotation |
| Software | Defect detection, measurement, report export |
| Compliance | Lead shielding, AERB certified |
| Power Supply | 230V AC, 50Hz, Single Phase |
| System Weight | Approx. 700 Kg |
