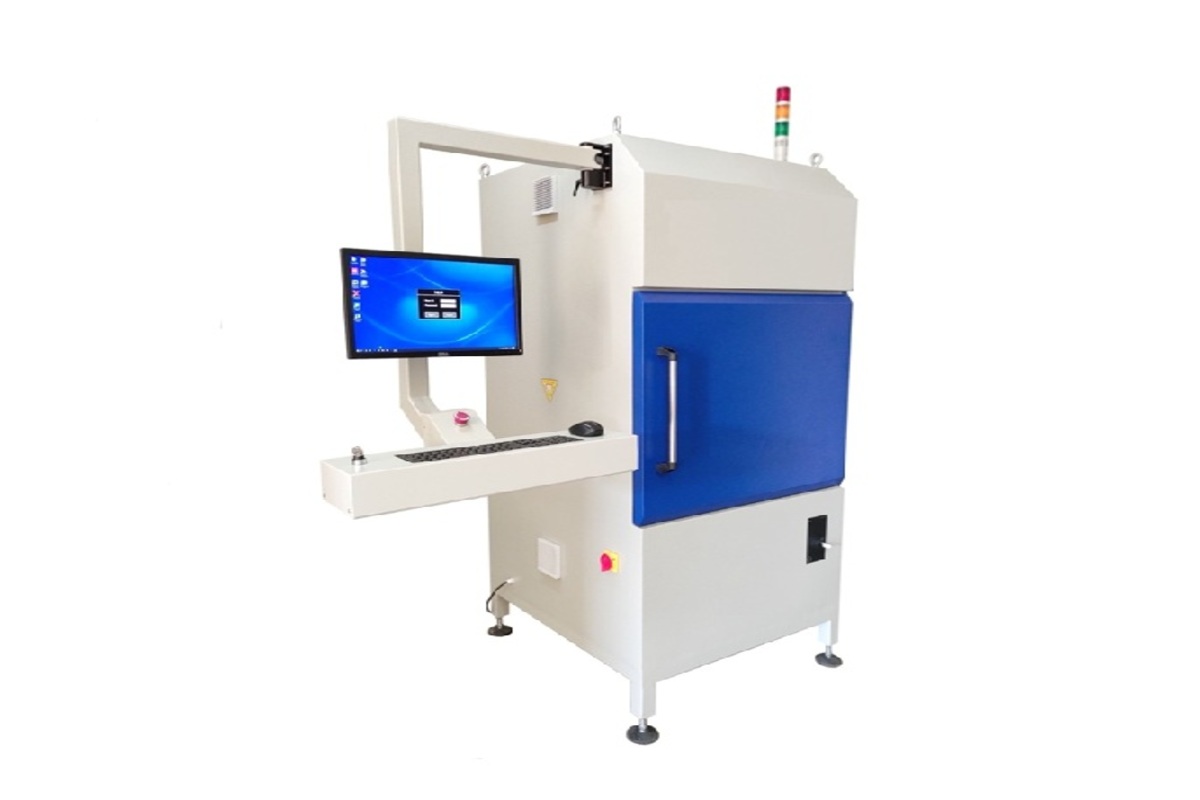

Industrial X-Ray Scanner - For Lead Battery Inspection
Our **Industrial X-Ray Scanner for Lead Battery Inspection** is specifically engineered to analyze the internal construction of lead-acid batteries and detect manufacturing defects such as short circuits, misaligned electrodes, improper connections, and internal cracks. The system supports both cylindrical and prismatic battery formats, ensuring quality and safety compliance in mass production environments.
Ideal for use by battery manufacturers, quality labs, and R&D departments, this non-destructive inspection system improves reliability while minimizing product failure risk.
Model No. - PSIPL-LBX 5050
| Application | Inspection of lead-acid battery internals |
|---|---|
| Defect Detection | Shorts, electrode misalignment, cracks |
| Supported Cell Types | Prismatic, Cylindrical, AGM, GEL |
| Fast scanning and high-resolution imaging | |
| Batch inspection and report generation available | |
| X-Ray Source | 160kV or 200kV, Closed Tube, Oil Cooled |
|---|---|
| Detector Type | Flat Panel Digital Detector (FPD) |
| Penetration Capability | 30 mm Lead Equivalent |
| Imaging Mode | Live Video + Still Image Capture |
| Scanning Speed | Up to 200mm/sec (Adjustable) |
| Software Tools | Defect Detection, 3D View, Reporting |
| Chamber Size | 600mm x 600mm x 600mm (Customizable) |
| Radiation Protection | Lead Shielded Cabinet with Interlocks |
| Power Supply | 230V AC, 50Hz, 1 Phase |
| System Weight | Approx. 500 Kg |
