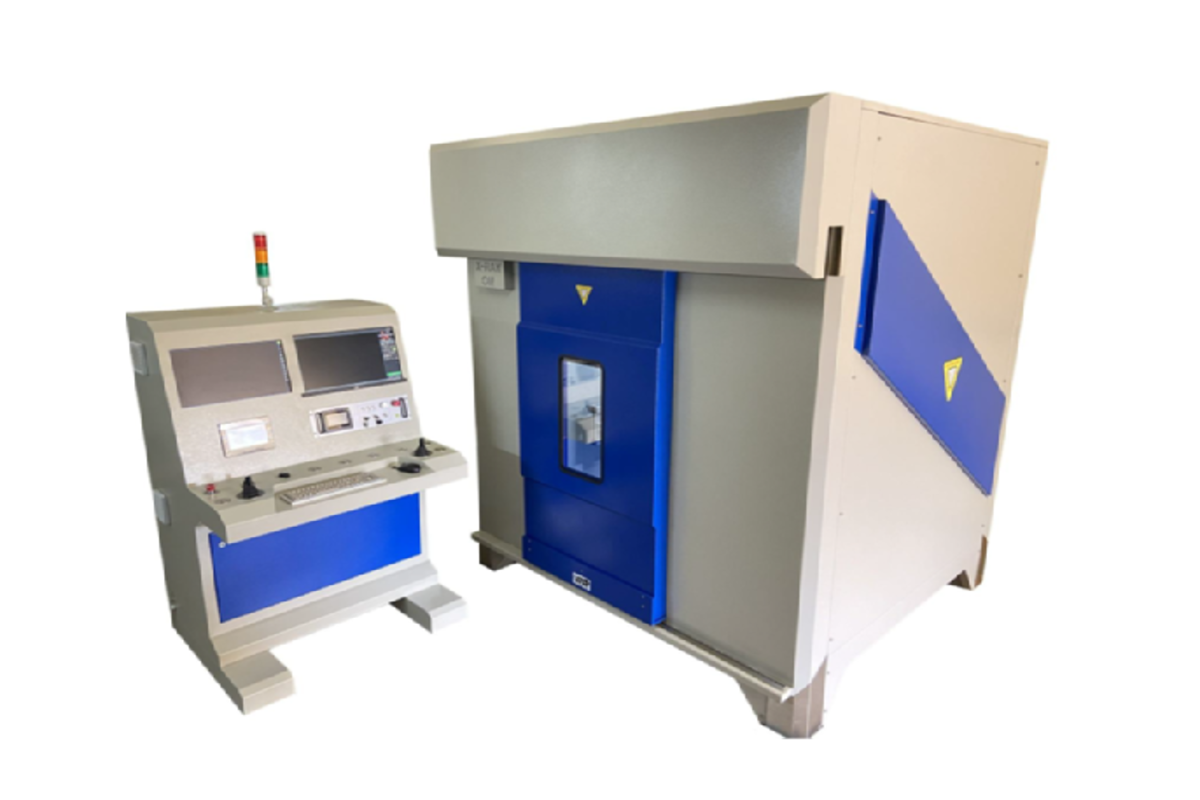

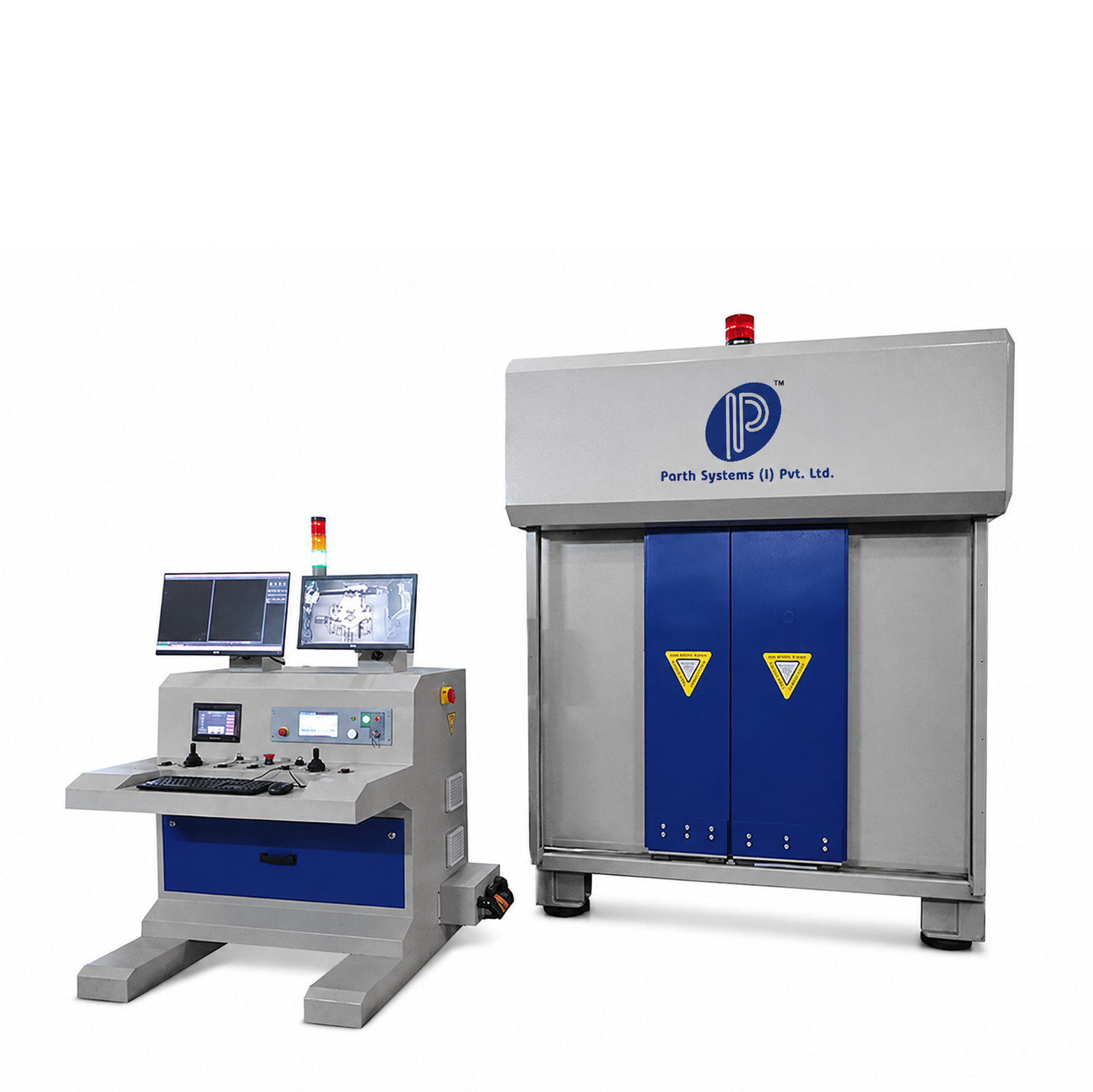

Industrial X-Ray Machine - For Epoxy Application
The Industrial X-Ray Machine for Epoxy Application is a high-precision inspection system developed to detect voids, bubbles, cracks, and material inconsistencies in epoxy-potted components. Ideal for electronic and electrical industries, this non-destructive testing system ensures quality control and product reliability in epoxy-coated assemblies and sealed parts.
This system is highly beneficial in inspecting transformers, circuit boards, sensors, coils, and other components where epoxy is used as a protective or insulating material.
Model No. - PSIPL-EPX 6060
PRODUCT DETAILS
| Application | Void and defect detection in epoxy-filled parts |
|---|---|
| Industries Served | Electronics, Automotive, Electrical Components |
| Inspection Type | Non-destructive internal examination |
| Real-time image display and defect highlighting | |
| Custom fixtures for varied epoxy part sizes | |
TECHNICAL SPECIFICATIONS
| X-Ray Source | 130kV/160kV microfocus tube, Air/Oil cooled |
|---|---|
| Resolution | Up to 2μm (depending on model) |
| Detector Type | Flat Panel Detector with 16-bit grayscale |
| Imaging Software | Advanced Analysis Suite with Zoom, Contrast, Histogram |
| Working Area | 600 x 600 x 500 mm (Custom sizes available) |
| Scan Modes | Live imaging, Still Capture, Layered Scan |
| Power Supply | 230V AC, 50Hz |
| Radiation Safety | Compliant with AERB safety norms, Full shielding |
| Chamber Access | Motorized Door with Interlock |
| System Weight | Approx. 450–600 Kg |
