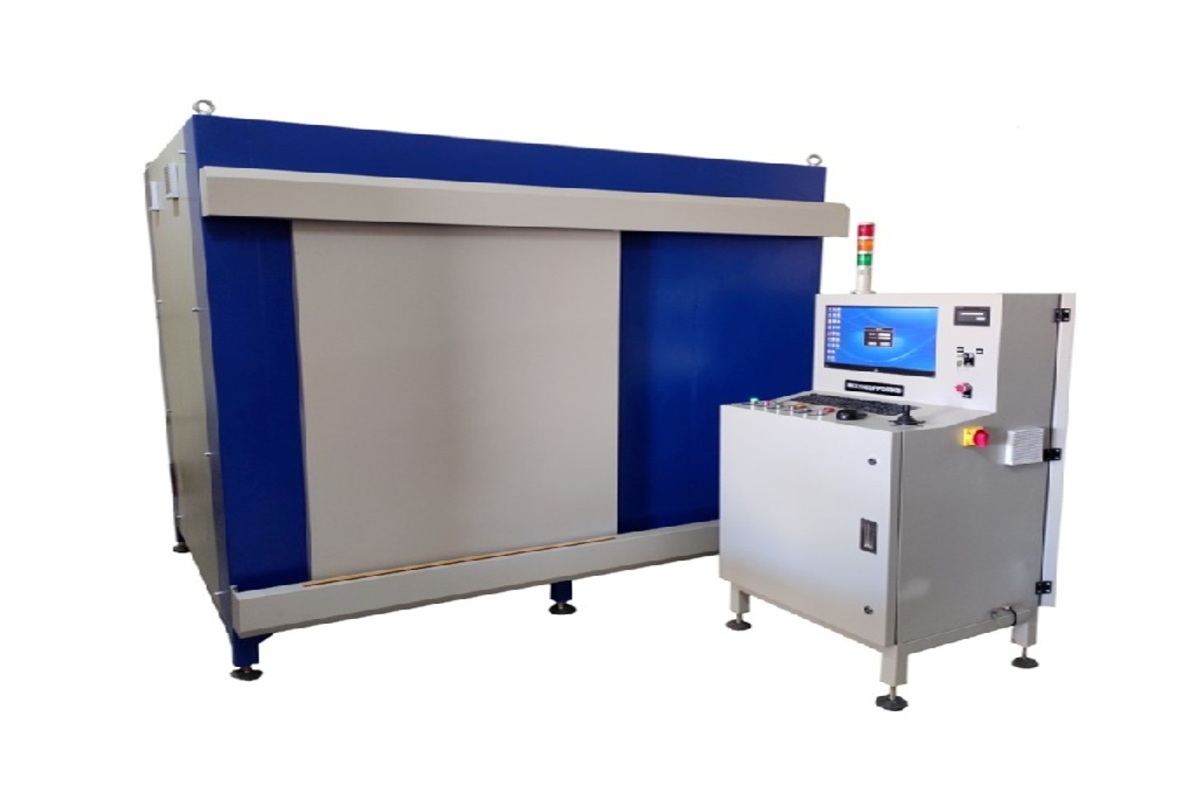

Industrial X-Ray Machine - For Inspection of Epoxy Parts
We are a trusted Manufacturer, Supplier, and Exporter of Industrial X-Ray Machines specially designed for the Inspection of Epoxy Parts. These systems are built to perform non-destructive testing (NDT) of epoxy-encapsulated components, ensuring quality control and internal defect detection without damaging the product.
Epoxy parts used in electronic assemblies, insulators, transformers, and automotive parts often require high precision inspection. Our X-ray systems offer superior image clarity, detecting internal cracks, air bubbles, and voids commonly hidden within epoxy resin structures.
Model No. - PSIPL IXM-E400
| Application | Non-destructive inspection of epoxy-filled parts |
|---|---|
| Common Use Cases | Transformer components, epoxy insulators, potted electronics |
| Imaging Method | Digital Radiography (DR) |
| Enables void and bubble detection inside epoxy | |
| Custom fixturing for varying epoxy part geometries | |
| X-Ray Source | Microfocus X-Ray Tube, 90–200 kV |
|---|---|
| Detector | Flat panel digital detector |
| Inspection Volume | Up to 400mm (H) × 300mm (W) |
| Resolution | Up to 50 μm spatial resolution |
| Penetration Capacity | 20–25 mm of epoxy resin |
| Control System | PC-Based with imaging and defect analysis software |
| Power Requirement | 230V AC, Single Phase, 50Hz |
| Cooling | Air cooled / Oil cooled based on model |
| Radiation Safety | Lead Shielding as per AERB Guidelines |
| Weight | Approx. 550–600 Kg |
