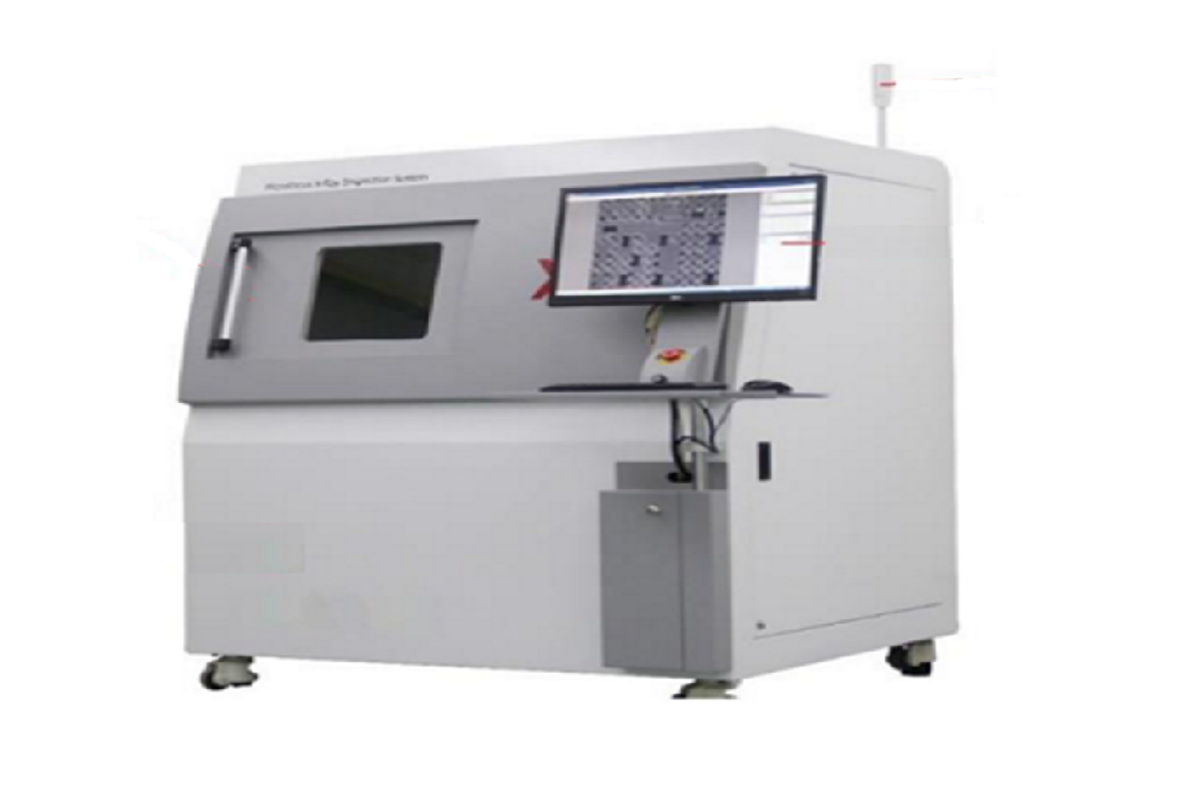

Industrial X-Ray Machine - For Aluminum Weld Joints Inspection
We are a reliable Manufacturer, Supplier, and Exporter of Industrial X-Ray Machines specifically designed for the inspection of **Aluminum Weld Joints**. Our system provides high-contrast, high-resolution radiographic images that help in detecting critical internal defects such as porosity, cracks, and lack of fusion in aluminum welds used across various industries.
This X-ray inspection system is ideal for industries such as automotive, aerospace, defense, and structural fabrication where precise weld quality is critical. The machine is equipped with digital imaging technology, ensuring fast and accurate non-destructive testing (NDT) results for quality assurance and process control.
Model No. - PSIPL-WJX 6050
| Application | Weld Joint Inspection in Aluminum Components |
|---|---|
| Industries Served | Automotive, Aerospace, Structural Fabrication, Defense |
| Image Quality | High-resolution real-time digital radiography |
| Identifies porosity, cracks, inclusions, and voids | |
| Supports small, medium, and large weld parts | |
| X-Ray Source | 160–225 kV microfocus / standard X-Ray tube |
|---|---|
| Detector | High-resolution digital flat panel detector |
| Part Size Capacity | Up to 600mm × 500mm |
| Weld Thickness Range | 1 mm to 25 mm (Aluminum) |
| Penetration Capability | Typical 25mm aluminum |
| Image Display | Real-time with zoom, contrast, filters, measurements |
| Software Features | Defect detection, archiving, report generation |
| Safety Compliance | Lead shielding, AERB-compliant design |
| Power Supply | 230V AC, Single Phase, 50Hz |
| System Weight | Approx. 600–700 Kg |
