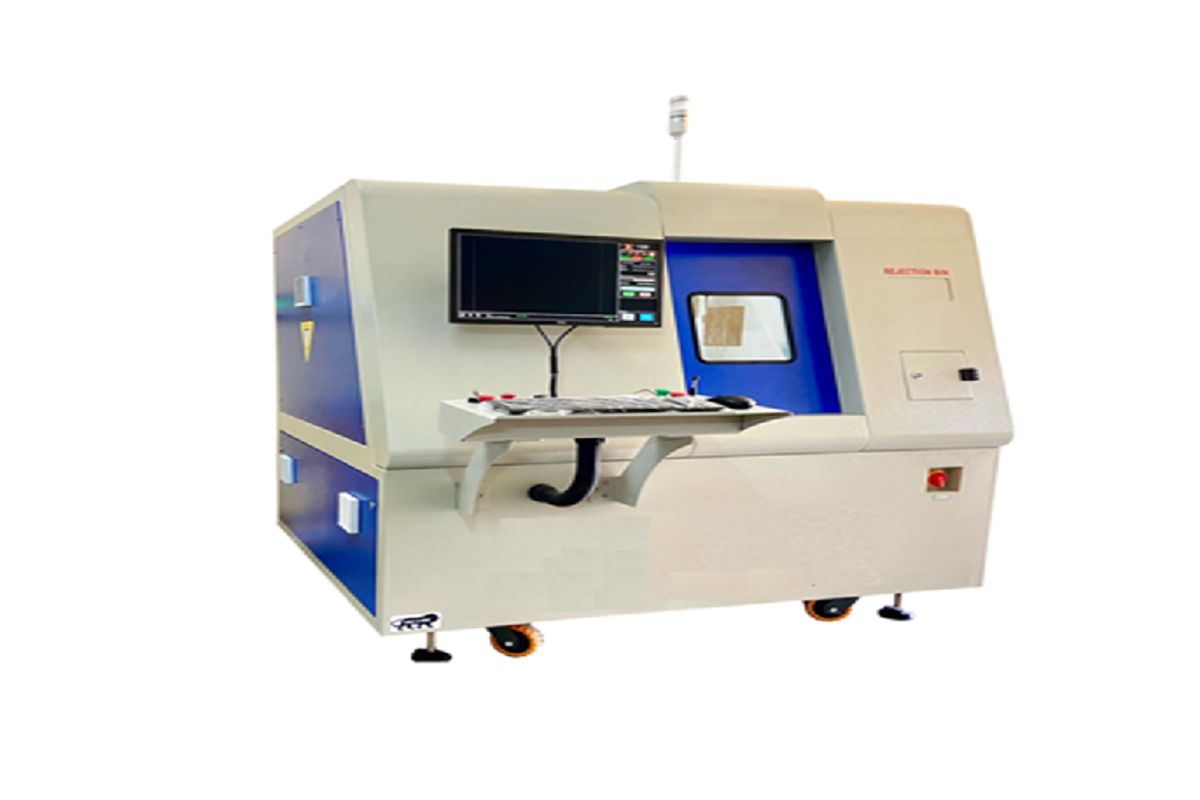

Industrial X-Ray Machine - For Inspection of HDPE Parts
The Industrial X-Ray Machine for HDPE Parts Inspection is a non-destructive testing (NDT) solution designed to detect internal flaws such as voids, cracks, and welding defects in high-density polyethylene (HDPE) components. Ideal for quality control in pipe manufacturing, packaging, chemical containers, and fluid transport components.
This solution ensures that HDPE parts meet structural integrity standards by providing real-time, high-resolution X-ray imaging without damaging the product.
Model No. - PSIPL-HDPE 7070
PRODUCT DETAILS
| Application | Internal defect detection in HDPE materials |
|---|---|
| Target Industries | Pipes, Packaging, Chemicals, Fluid Management |
| Inspection Capability | Void, weld, and thickness consistency inspection |
| Compatible with large and small HDPE components | |
| Custom jigs and automation available for repeatable tests | |
TECHNICAL SPECIFICATIONS
| X-Ray Source | 130kV / 160kV Microfocus Tube |
|---|---|
| Minimum Defect Detection | Down to 0.2 mm voids in HDPE |
| Detector | Flat panel digital detector, 16-bit output |
| Inspection Chamber | 700 x 700 x 500 mm (customizable) |
| Software Features | Zoom, Rotate, Filter, Negative View, Line Profile |
| Power Input | 230V AC ±10%, 50Hz |
| Radiation Safety | AERB-approved shielding, interlocks, and leak-proof design |
| Automation | Optional motorized stage for multi-angle inspection |
| Weight | Approx. 600 Kg |
