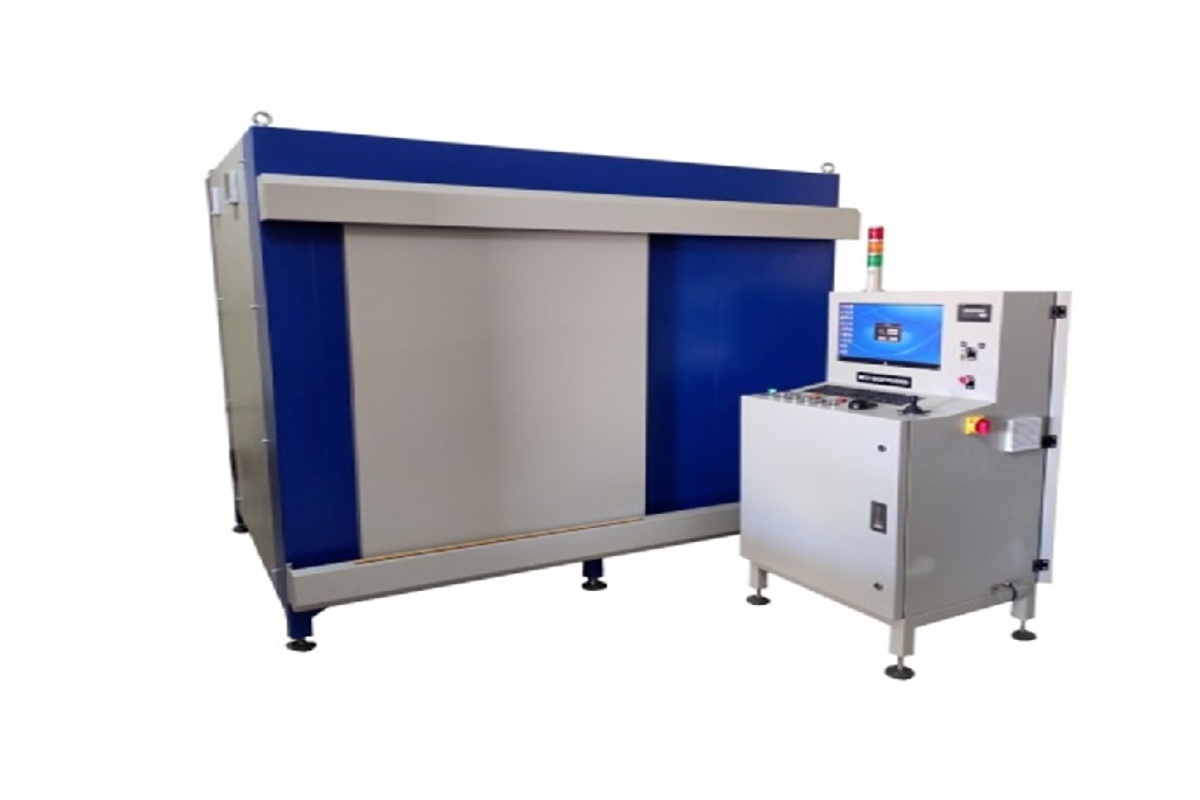

Industrial X-ray Machine - For Steel Casting
We offer advanced **Industrial X-ray Machines** specifically engineered for the inspection of **Steel Castings**. These machines enable non-destructive testing (NDT) to identify internal flaws such as porosity, inclusions, cracks, and shrinkage cavities in thick and dense metal structures.
Widely used in heavy engineering, oil & gas, energy, automotive, and defense sectors, this system ensures defect-free components and compliance with international quality standards such as ASTM and ASME.
Model No. - PSIPL-SCX 8070
PRODUCT DETAILS
| Application | Inspection of Steel Cast Components |
|---|---|
| Industries Served | Heavy Engineering, Oil & Gas, Marine, Foundries |
| Imaging Type | High-penetration Digital Radiography (DR) |
| Detects deep internal flaws in thick metal castings | |
| Supports large part sizes and high-contrast imaging | |
TECHNICAL SPECIFICATIONS
| X-Ray Source | 225 kV / 320 kV high-penetration X-ray tube |
|---|---|
| Detector | Digital Flat Panel or Line Scanner (High Dynamic Range) |
| Max Casting Size | 800 mm × 700 mm |
| Wall Thickness Range | Up to 50 mm steel |
| Defect Detection | Porosity, inclusions, blow holes, cracks |
| Software Features | Image enhancement, automatic defect recognition, reporting |
| Radiation Safety | Lead Shielded Enclosure, AERB Compliance |
| Power Requirement | 415V AC, 3-Phase, 50Hz |
| System Weight | Approx. 1200 Kg |
