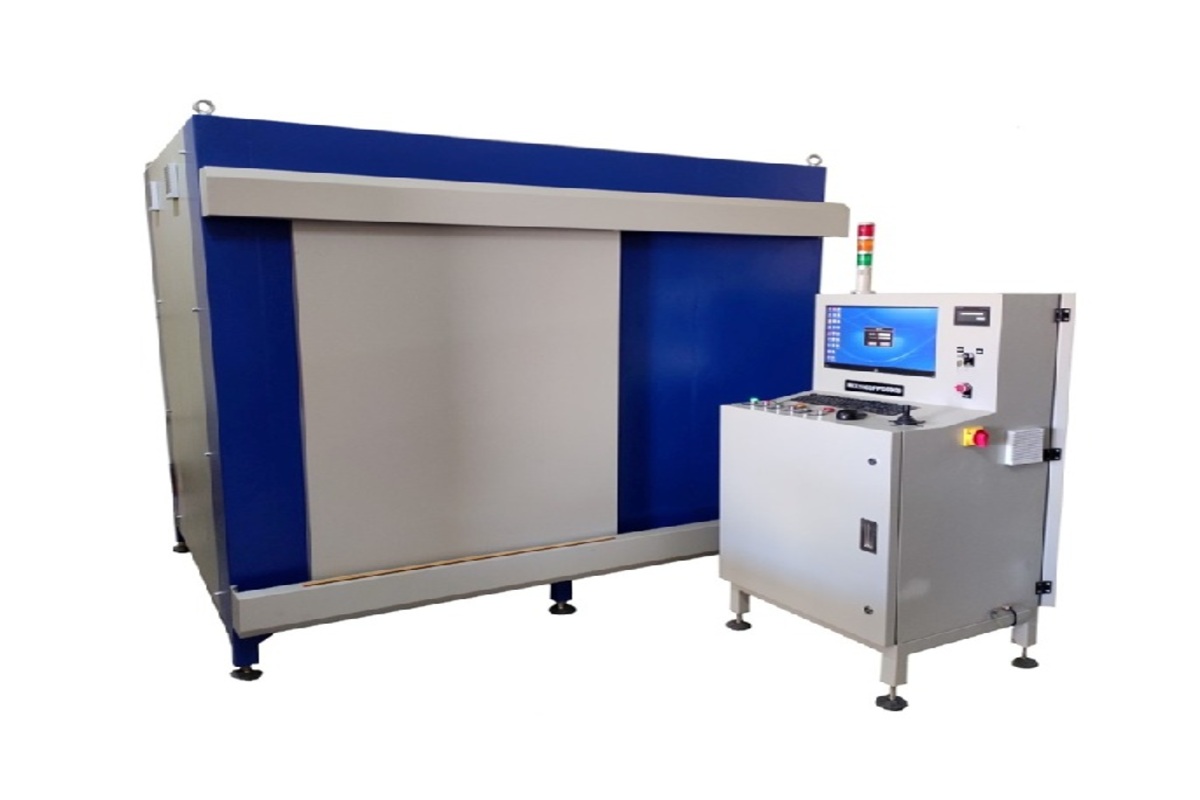

Industrial X-Ray Machine - For Epoxy Application
The Industrial X-Ray Machine for Epoxy Application is a precision-engineered system designed for non-destructive inspection of epoxy-filled components. It effectively detects internal defects such as voids, air bubbles, cracks, and improper filling in epoxy-potted assemblies commonly used in electrical and electronic industries.
This solution enhances quality assurance processes for transformers, sensors, coils, PCB potting, and more—helping manufacturers deliver reliable, defect-free products.
Model No. - PSIPL-EPX 6060
PRODUCT DETAILS
| Application | Inspection of epoxy-potted components |
|---|---|
| Target Industries | Electronics, Automotive, Power Components |
| Inspection Capability | Void detection, internal structure analysis |
| High-clarity real-time X-ray imaging | |
| Customizable fixturing for various component sizes | |
TECHNICAL SPECIFICATIONS
| X-Ray Source | Microfocus 130kV / 160kV, Air or Oil cooled |
|---|---|
| Minimum Defect Detection | Up to 2μm resolution |
| Detector | Flat panel, 16-bit grayscale dynamic range |
| Inspection Chamber | 600 x 600 x 500 mm (customizable) |
| Imaging Software | Zoom, Invert, Histogram, Enhancement Filters |
| Power Input | 230V AC, 50Hz |
| Radiation Safety | AERB compliant shielding and interlocks |
| Automation | Optional Auto X, Y, Z axis manipulation |
| Weight | Approx. 500–600 Kg |
