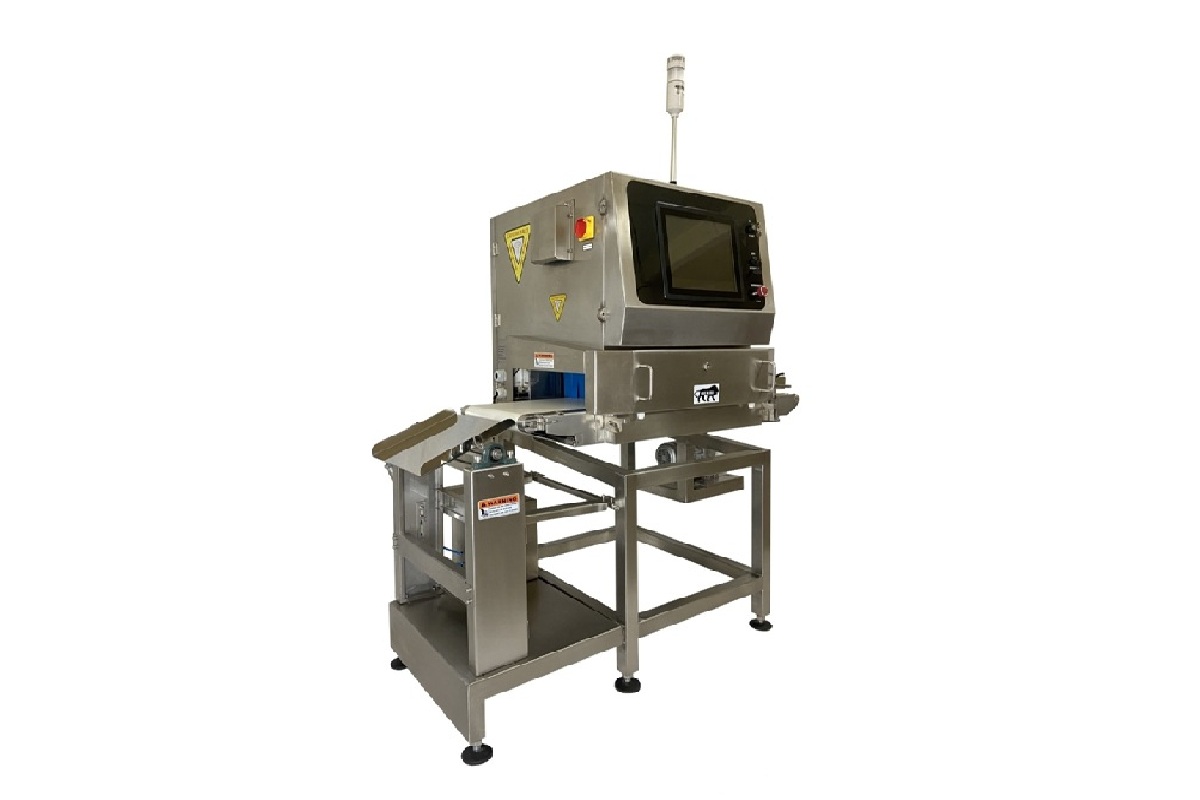

Food X-Ray Machine - For Shrimp & Seafood Inspection
Our Food X-Ray Machine for Shrimp is specially developed for detecting bones, metal fragments, glass pieces, shell remnants, and other foreign materials in processed and raw shrimp. It offers precise, non-destructive internal inspection to ensure the safety and quality of seafood exports and packaged products.
Designed for use in wet and frozen food environments, this system is built to meet hygiene and food safety standards with high durability and corrosion-resistant materials. Ideal for seafood processors, exporters, and QC departments.
Model No. - PSIPL-SHR 4025
PRODUCT DETAILS
| Application | Raw & Frozen Shrimp, Prawns, and Seafood Products |
|---|---|
| Detection Capability | Shell fragments, metal, bones, stones, glass |
| Inspection Mode | Inline Continuous or Batch Scanning |
| IP66 waterproof construction for seafood facilities | |
| Optional rejection system with air jet or diverter | |
TECHNICAL SPECIFICATIONS
| X-Ray Source | 80–100 kV Sealed Tube |
|---|---|
| Detector | High-Resolution Linear Array Detector |
| Conveyor Speed | 10 – 60 m/min (Adjustable) |
| Image Processing | Foreign body detection, density & void analysis |
| User Interface | Touchscreen HMI with audit logging |
| Power Supply | 230V AC, 1 Phase, 50Hz |
| Build Material | SS 316 Food Grade – Rustproof & Washable |
| Compliance | CE Certified, AERB Guidelines, HACCP Compliant |
| Dimensions | Approx. 1400 x 850 x 1500 mm |
| System Weight | Approx. 600 Kg |
