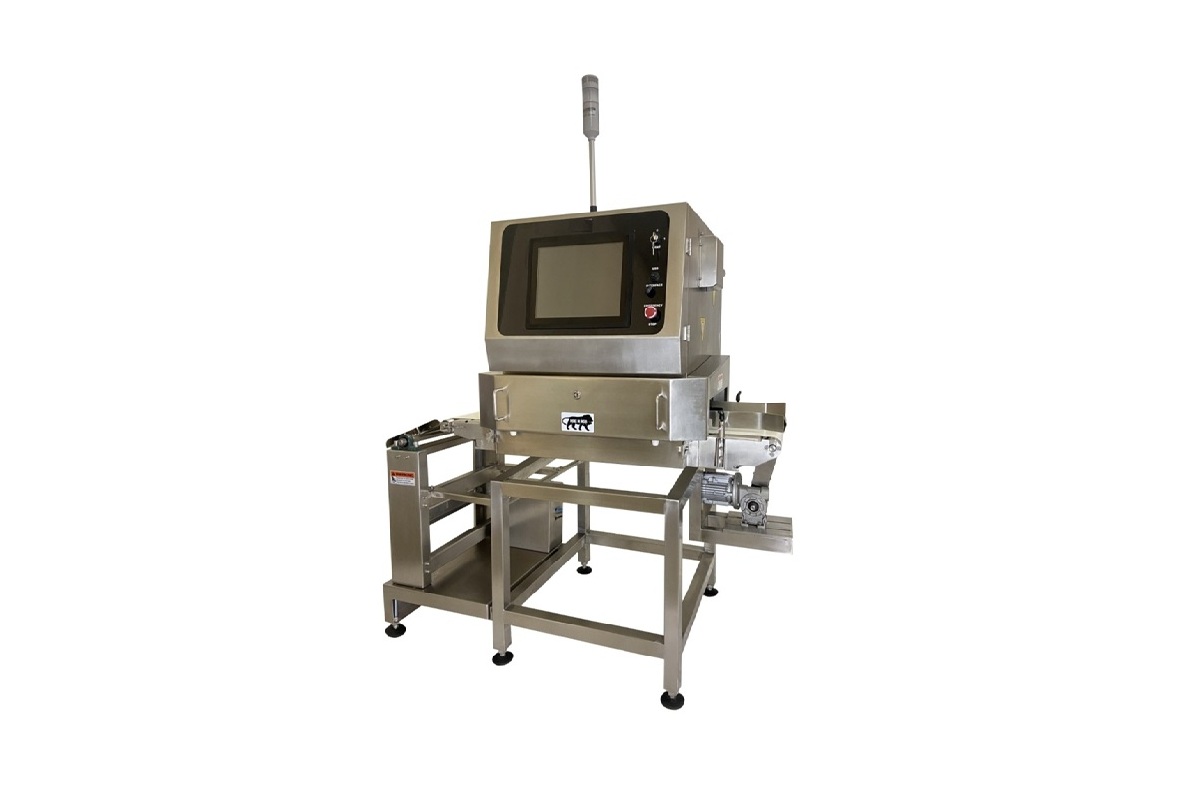

Food X-Ray Machine - For Raisin
Our Food X-Ray Machines are specially designed to inspect raisins for internal defects, embedded foreign contaminants, and quality grading. The system ensures consistent safety and quality control in high-volume raisin processing lines with non-destructive imaging.
This solution is ideal for exporters, processors, and packagers looking to detect and reject contaminants like small stones, glass shards, dense stems, or metal fragments that may be missed by conventional sorting systems.
Model No. - PSIPL-FDR 4010
PRODUCT DETAILS
| Application | Raisin (Dry Grapes) Sorting & Inspection |
|---|---|
| Detection Capability | Stones, Metal, Glass, Hard Stems, Insect Infestation |
| Inspection Type | Inline X-Ray with Auto Rejection Option |
| Supports batch and continuous operation | |
| Compliant with food safety standards (FSSAI & CE) | |
TECHNICAL SPECIFICATIONS
| X-Ray Tube | 80–100 kV Sealed X-Ray Tube |
|---|---|
| Detector Type | High-Resolution Linear Detector |
| Conveyor Speed | Up to 40 m/min (Adjustable) |
| Image Processing | Contaminant Detection, Size Grading, Fill Level |
| User Interface | 7" Touchscreen with Role-Based Access |
| Power Supply | 230V AC, Single Phase, 50Hz |
| Construction | SS304 Food Grade Body with IP65 Enclosure |
| Machine Weight | Approx. 420 Kg |
