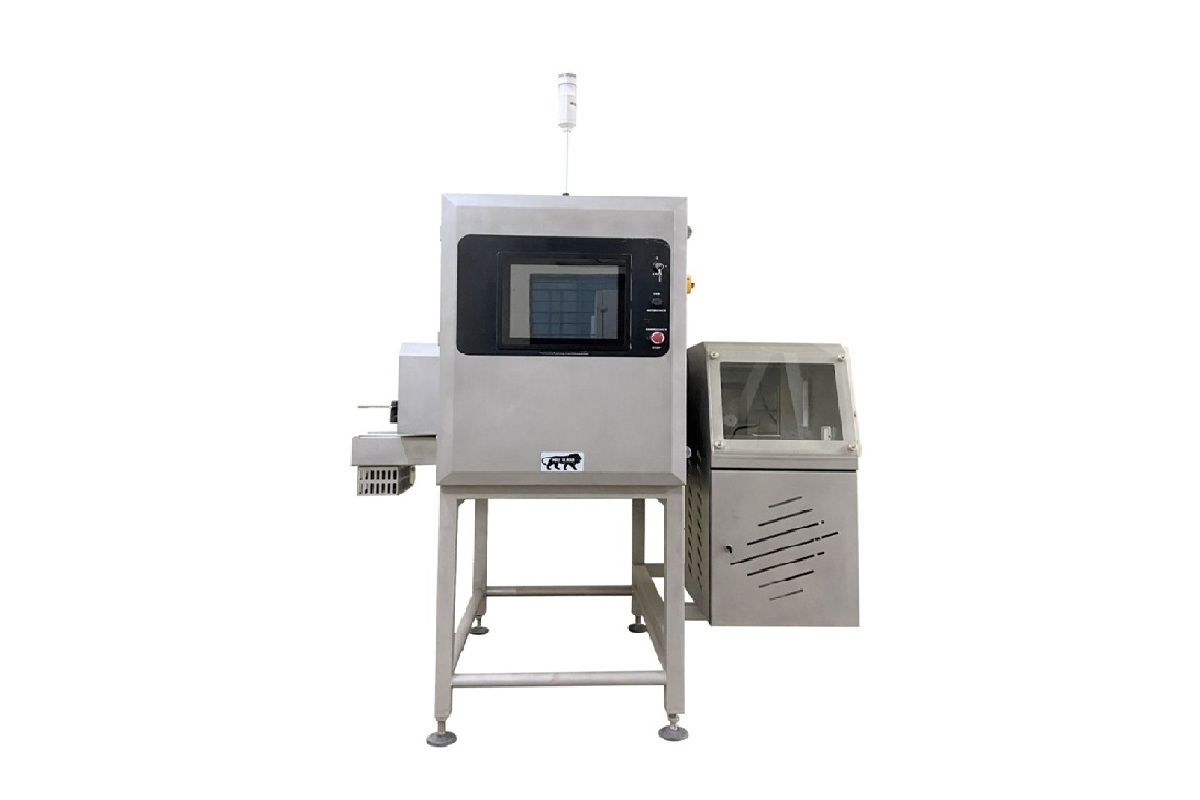

X-Ray Machine - For Capsule Inspection
Our X-Ray Machine for Capsule Inspection is purpose-built to inspect pharmaceutical capsules for foreign contaminants, fill consistency, and structural defects. It enables real-time, non-invasive inspection that safeguards product quality and ensures compliance with regulatory norms.
This machine is ideal for pharmaceutical companies engaged in the production of gelatin or plant-based capsules, especially for export or regulated markets. It accurately detects missing content, air pockets, or metal and glass particles within the capsule shell.
Model No. - PSIPL-CAP 3020
PRODUCT DETAILS
| Application | Hard & Soft Gel Capsules, Plant-based Capsules |
|---|---|
| Detection Capability | Foreign materials (metal, glass), empty/missing fill, cracks |
| Inspection Type | Inline or batch mode X-ray scanning with rejection |
| 21 CFR Part 11 compliance optional | |
| Cleanroom compatible system | |
TECHNICAL SPECIFICATIONS
| X-Ray Tube | Low Power, 80–100 kV Sealed Tube |
|---|---|
| Detector Type | High-Speed Linear or Flat Panel Detector |
| Scan Speed | Up to 200 capsules/min (adjustable) |
| Analysis Features | Fill level check, contaminant detection, void analysis |
| Interface | 10" Touchscreen HMI with User Access Control |
| Safety | CE Certified, Full Radiation Shielding, Interlock System |
| Power Supply | 230V AC, Single Phase, 50Hz |
| Construction | Stainless Steel 304/316, IP65 Rating |
| Dimensions | Approx. 1200 x 800 x 1600 mm |
| Weight | Approx. 450 Kg |
