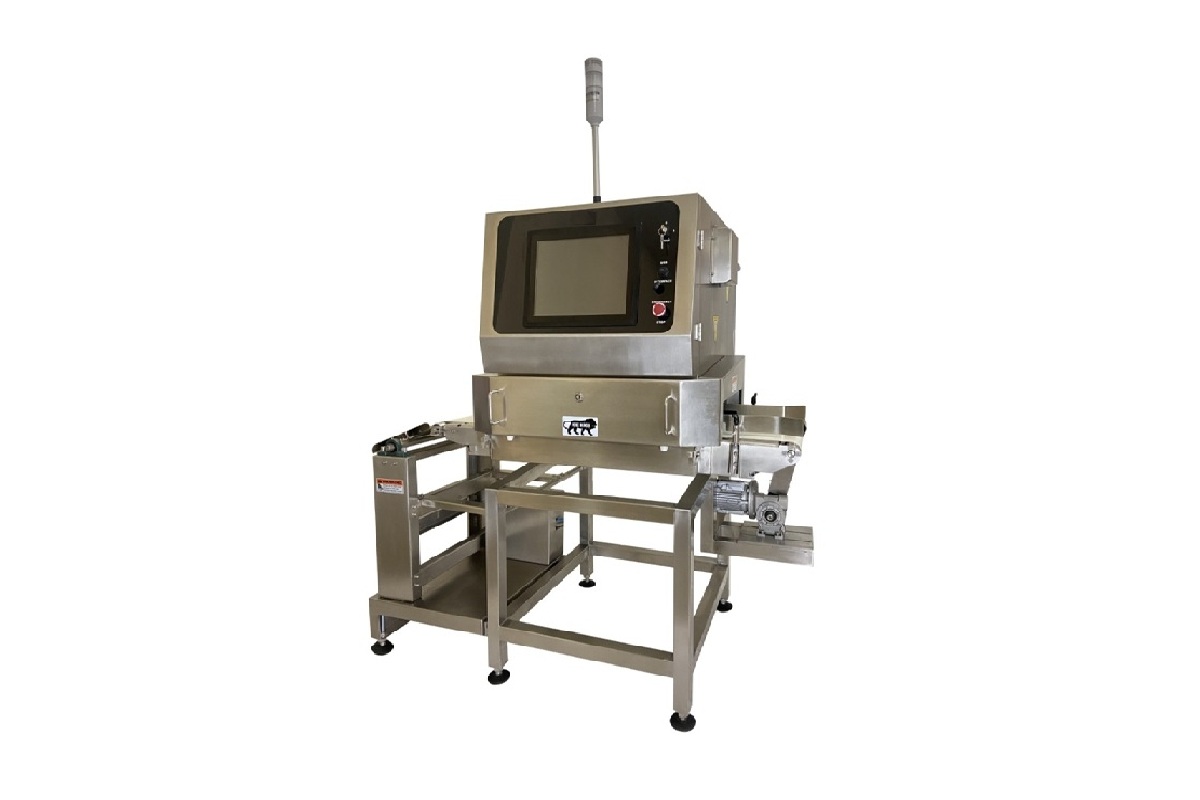

Food X-Ray Machine - For Coconut Inspection
Our Food X-Ray Machine for Coconut Inspection is designed for non-destructive internal examination of coconuts, detecting defects like cracks, mold, shell fragments, and immature or spoiled portions without breaking the shell. This advanced solution enhances quality assurance for coconut exporters, food processors, and raw nut suppliers.
It can be used for both whole coconuts and processed coconut pieces, ensuring safety and quality in high-throughput environments. Built to withstand dusty, humid processing conditions with food-grade components.
Model No. - PSIPL-COC 6010
PRODUCT DETAILS
| Application | Whole Coconuts, Coconut Pieces, Dried Coconut |
|---|---|
| Detection Capability | Shell cracks, mold, inner voids, foreign objects |
| Inspection Type | Inline or Batch-Based Non-Destructive Inspection |
| Supports pre- and post-dehusking inspection | |
| Optional grading & rejection system | |
TECHNICAL SPECIFICATIONS
| X-Ray Source | 90–120 kV Sealed Tube |
|---|---|
| Detector Type | Wide-Area Flat Panel or Linear Array |
| Conveyor Speed | 10 – 40 m/min (Adjustable) |
| Image Processing | Crack detection, density mapping, void analysis |
| User Interface | Touchscreen HMI with reporting and log access |
| Safety Features | CE Certified, Lead Shielding, Door Interlocks |
| Power Supply | 230V AC, 1 Phase, 50Hz |
| Material Construction | Stainless Steel SS304 with IP65 Rating |
| System Dimensions | Approx. 1600 x 900 x 1700 mm |
| Machine Weight | Approx. 700 Kg |
