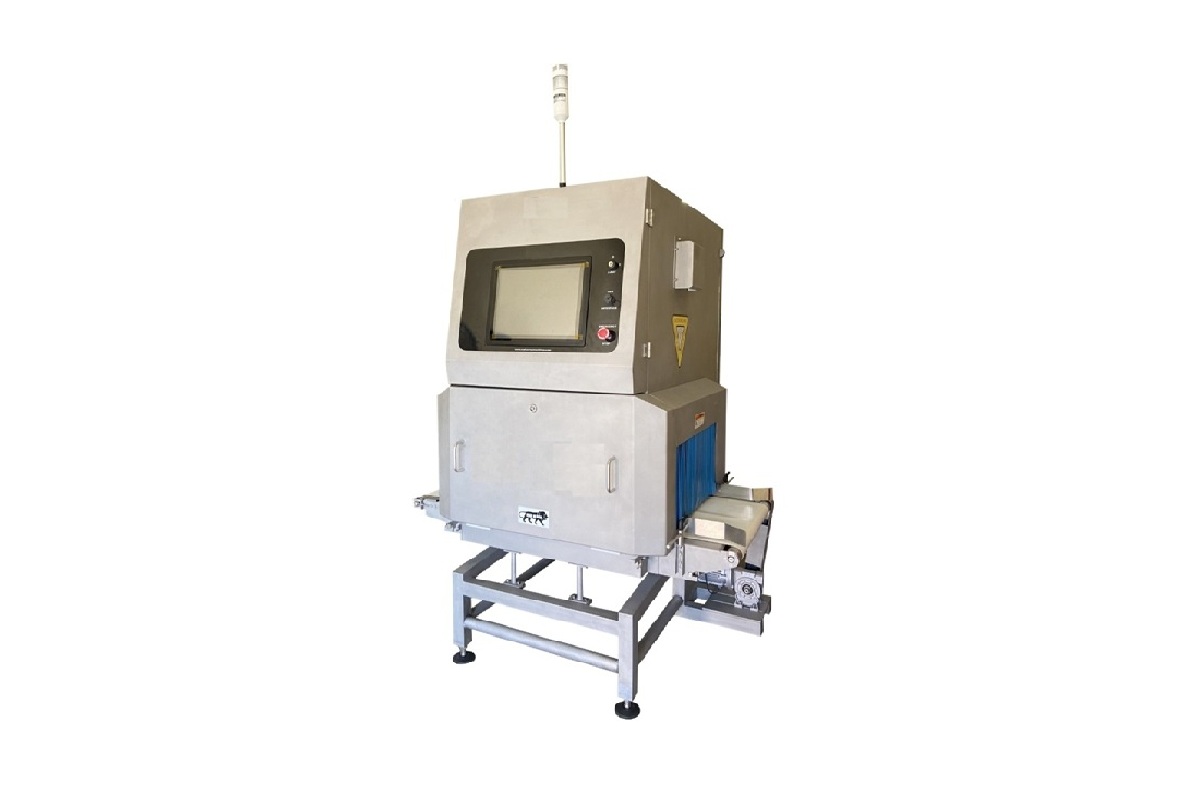

X-Ray Scanner - For Glass Pickle Bottle Inspection
Our X-Ray Scanner for Glass Pickle Bottles is specially engineered to inspect sealed glass jars filled with pickles and other preserved foods. It detects contaminants such as glass shards, metal fragments, stones, and dense plastic pieces, ensuring consumer safety without opening the bottle.
This system is ideal for food manufacturers focused on export or compliance with strict food safety standards like FSSAI, FDA, or BRC. It inspects through the glass and detects internal abnormalities even in high-viscosity or opaque contents like pickles.
Model No. - PSIPL-GPB 7020
PRODUCT DETAILS
| Application | Glass Bottles Containing Pickles, Chutneys, Sauces |
|---|---|
| Detection Capability | Glass shards, stones, metal, dense plastic |
| Inspection Type | Inline X-Ray Scanning with Reject Mechanism |
| Compatible with cylindrical, square, and custom-shaped glass jars | |
| Export-compliant imaging and batch traceability | |
TECHNICAL SPECIFICATIONS
| X-Ray Tube | 100 kV – 160 kV Sealed Tube with Adjustable Power |
|---|---|
| Detector Type | High Resolution Line Scan Detector |
| Conveyor Speed | 10 – 60 bottles/min (Adjustable) |
| Image Analysis | Foreign object detection, fill level monitoring |
| Display Interface | 10" Touchscreen with Data Logging |
| Safety Standards | Complies with CE, FDA, and BIS Radiation Safety Norms |
| Power Supply | 230V AC, Single Phase, 50Hz |
| Build Material | Stainless Steel SS304, Food Grade, IP65 Rated |
| Machine Dimensions | Approx. 1800 x 850 x 1600 mm |
| System Weight | Approx. 650 Kg |
