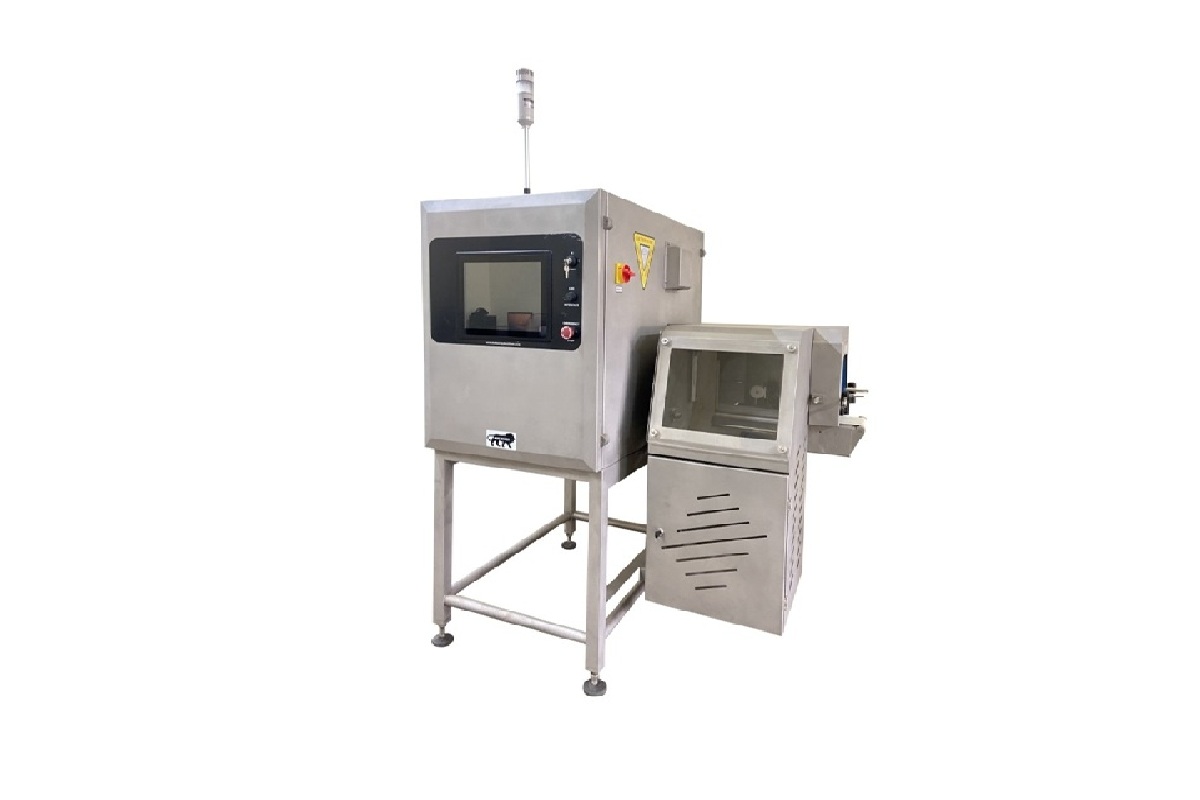

Food X-Ray Machine - For Mango & Apple Inspection
Our Food X-Ray Machine for Mango and Apple enables non-destructive inspection of fresh fruits for internal defects, infestation, foreign materials, and core issues. It is ideal for exporters, processors, and cold storage facilities needing fast, accurate, and contact-free sorting and grading.
The system enhances food safety, reduces manual errors, and ensures consistency in fruit quality by detecting hidden cracks, wormholes, and embedded materials without damaging the produce.
Model No. - PSIPL-FXA 3520
PRODUCT DETAILS
| Application | Whole Mangoes, Apples, and Similar Fruits |
|---|---|
| Detection Capability | Internal cracks, insect infestation, embedded objects |
| Inspection Mode | Inline or Standalone with Sorting Option |
| Gentle fruit handling conveyor system included | |
| Software classification for quality grading | |
TECHNICAL SPECIFICATIONS
| X-Ray Source | 90–120 kV Sealed Tube with Low Radiation |
|---|---|
| Detector | High-Resolution Flat Panel or Linear Array |
| Conveyor Speed | Up to 80 fruits/min (Adjustable) |
| Interface | 10” Touchscreen with Multi-Language Support |
| Image Analysis | Defect detection, shape sorting, density mapping |
| Power Requirement | 230V AC, 1 Phase, 50Hz |
| Material & Finish | SS 304 Food Grade with IP66 Enclosure |
| Safety Standards | CE Marked, AERB Compliant, Fully Shielded |
| System Dimensions | Approx. 1200 x 900 x 1500 mm |
| Weight | Approx. 550 Kg |
