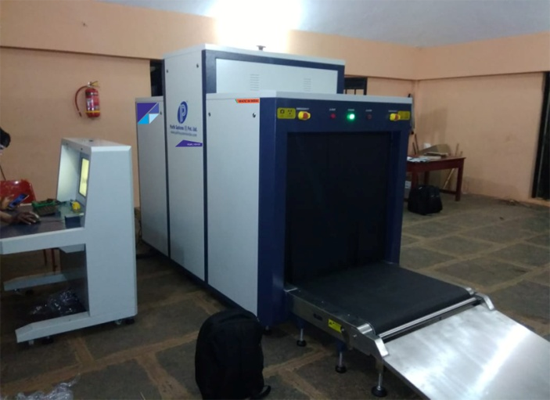

Cargo Luggage Scanner - PSIPL 100100
We are Manufacturer, Supplier, Exporter of X Ray Baggage Scanner PSIPL 100100, Baggage Scanning Machines and our set up is situated in Pune, Maharashtra, India. It is use in Bank, Hotels, Corporate Offices, shopping-mall, hospitals, Prison, Factories, Museums, etc. This range is also known as X Ray Baggage Scanners / Inspection / Scanning / Security System, X Ray Luggage Scanners / Inspection / Scanning / Security System, Baggage Scanner / Inspection / Scanning / Security Machine, Luggage Scanner / Inspection / Scanning / Security Machines and our set up is situated in Pune, Maharashtra, India. It is use in Bank, Hotels, Corporate Offices, shopping-mall, hospitals, Prison, Factories, Museums, etc.
Product Details - PSIPL 100100
| Tunnel dimensions | 1000 x 800 MM |
|---|---|
| Penetration level | 30/35MM Steel |
| Multiple viewing modes | Organic, B/W, Negative |
| Rotation facility available | |
| Moveble or on site checking models or vehicle mountable also available (optional) | |
Technical Specifications - PSIPL 100100
| Tunnel Size (mm) | 1000(L) x 800(W) |
|---|---|
| Speed (m/s) Conveyor | 0.22 |
| Height (mm) Conveyor Max | 700 |
| Load (Kgs.) | 150 |
| Penetration | Typical 32mm steel, Guarantee 30mm steel |
| Power Consumption | Max 0.8 KVA |
| X-Ray Generator | 160 KV, oil cooling, from bottom to top |
| Wire Resolution | Typical AWG 40, Guarantee AWG 38 |
| X-Ray Leakage | Typical 2.5 μGy/h, Guarantee 3.5 μGy/h |
| Boundary Leakage | Typical 1.0 μGy/h, Guarantee 1.5 μGy/h |
| Operation Power | 220 VAC (±10%) 50±3Hz |
| Operation Temperature / Humidity | 0 to 45°C / 5%-95% (noncondensing) |
| Unit Weight | Approx. 800 Kg. |
